5-AXIS 3DCNC MARBLEMACHINING CENTRE
STORMA CNC 3D — maximum performance in marble and granite through 5-axis freedom.
- Touchscreen colour digital 15" operator panel; CNC control of the X, Y, Z, C, A and milling axes (Italian TEX panel); multi-function (15 functions) mobile operator panel (standard)
- X axis 3,600 mm, Y axis 2,100 mm travel
- Z axis 500 mm vertical travel; C axis automatic 0–360° head rotation; A axis CNC-controlled 0–90° tilt
- 32.5 HP Saccardo main motor, 0–8,000 rpm, cutting speed adjustable from the operator panel via an ABB inverter
- ABB inverter as standard, automatic tool change, aluminium table, vacuum pads
- Pumped central lubrication (standard)

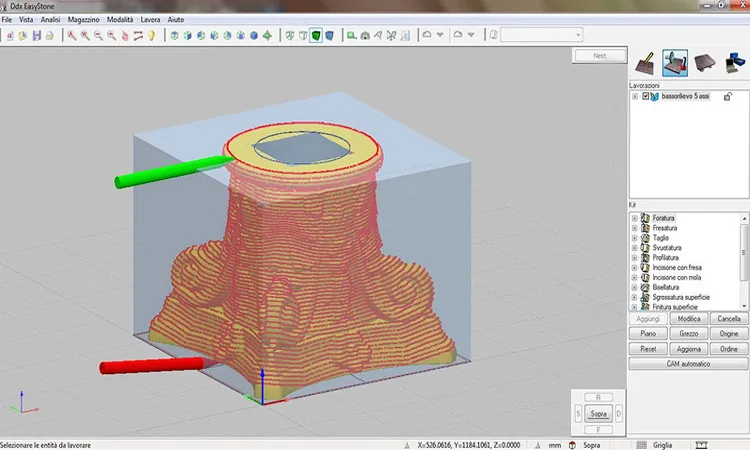

THREE-DIMENSIONAL
MACHINING
With STORMA CNC 3D, sculpture, architectural elements and artistic relief are produced from marble blocks on a single machine.
- Full CNC control of X-Y-Z plus A and C
- 3,600 mm wide cutting area
- 8,000 rpm blade speed

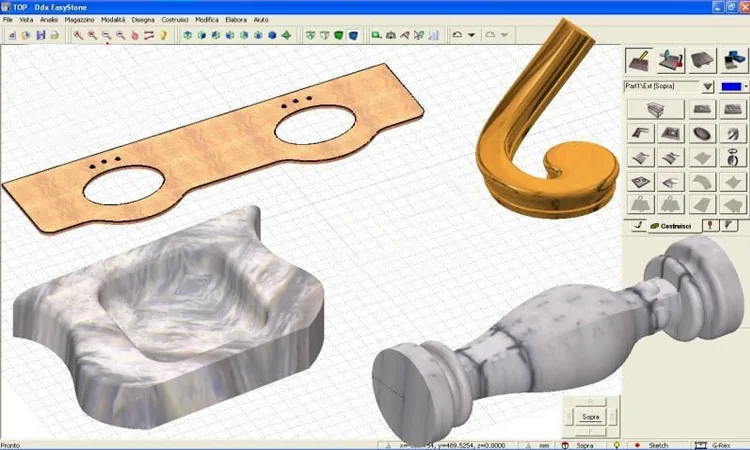

CAD / CAM
INTEGRATION
Transfer complex 3D models straight to the machine with DDX Easystone and Artec laser scanning.
- DDX Easystone CAM software
- Artec 3D laser scanning system
- 15" Italian TEX touchscreen panel
The 5-axis 3D CNC marble machining centre goes beyond two-dimensional cutting in marble and granite — it machines sculpture, relief and architectural elements in three dimensions. Forms modelled in CAM are carved and shaped on a single machine.
What It Produces
- Sculpture and busts
- Relief carving
- Columns and capitals
- Architectural elements and fireplaces
- Vases and decorative objects
- Stone basins
- Logo and lettering engraving
Materials Processed
Industries Served
Three-dimensional machining is a different discipline from straight cutting; sculpture and architectural detail are this machine’s speciality. For straight cutting and countertop-led production, bridge saws are the right choice.
Automatic Tool Changer
Programmable automatic tool change for uninterrupted production and multi-operation capacity.
Hot-Dip Galvanised Coating
Galvanised surface treatment on the machine structure for long-term corrosion protection.
DDX Easystone CAM Software
CAM software written for natural stone — fast programming and optimised toolpaths.
Artec Laser Scanning System
Artec 3D laser scanner integration for shape capture and precise block machining.
Hydraulic Lifting Table
Hydraulic Z-axis table that adapts to different material heights.
Lathe Option
Integrated lathe attachment for columns, plinths and cylindrical stonework.
Inverter
Frequency inverter for spindle speed control — energy efficiency and soft start.
Supergrip Coating
Non-slip Supergrip surface on the table for secure material clamping.
Slab Thickness Measurement
Automatic thickness sensor for a fast pre-machining measurement and a correct Z reference.
Light Barrier
Photoelectric light barrier for working-area safety and operator protection.
Milling Tools
A dedicated milling tool set for different materials and profiles.
Aluminium Table and Vacuum Pads
Aluminium T-slot table with a vacuum pad clamping system for precise fixturing.
| X Axis (Cutting Head) | 3,600 mm |
| Y Axis (Bridge) | 2,000 mm |
| Z Axis (Vertical) | 750 mm |
| Cutting Depth | 300 mm |
| Milling Height | 700 mm |
| A Axis | 0°–180° automatic |
| C Axis | 0°–360° clockwise |
| Blade Speed | 0 – 8,000 rpm |
| Main Motor | 32.5 HP (Saccardo) |
| Machine Dimensions | 6200 × 2750 × 3950 mm |
| Machine Weight | 8,000 kg |
| Traverse Speed | 30 m/min |
| Operating Voltage | 380 V / 50 Hz |
